Gas purification & gas drying
TIL Adsorption
Dynamic plant simulation for gas purification and gas drying
The TIL Add-On Adsorption allows the simulation and analysis of transient drying and separation processes for gas mixtures. The physical principle of adsorption is the basis for all models.
Learn moreUniversal basic model for gas mixtures and adsorption equilibrium
Modular approach facilitates construction of complex adsorption plants
Optimization of material and cycle times
Individually expandable material database

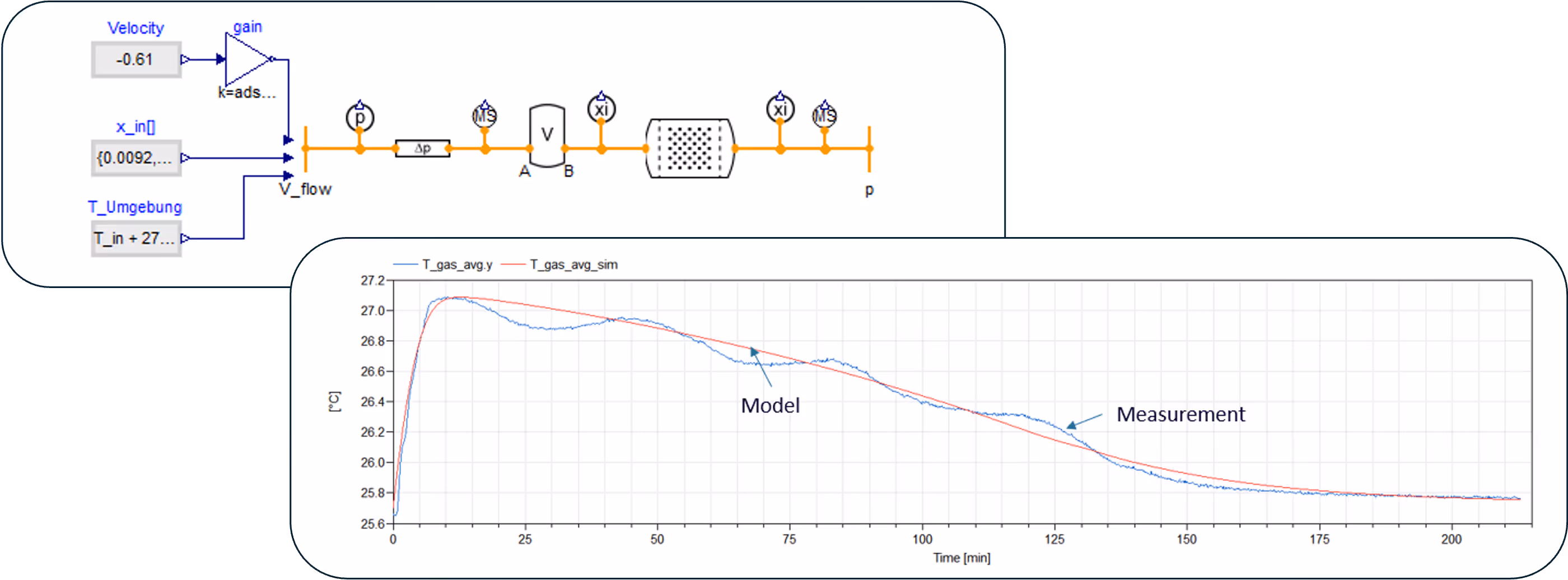

Analysis of breakthrough curves and adsorption kinetics
Investigation of PSA and TSA processes
Example systems for gas drying and gas purification
Air drying for battery production
Battery production places extremely high demands on the conditioning of the room air. The relative humidity must be below 1%. At room temperature, this corresponds to a dew point of around -34°C.
The drying of the air to such low residual humidities is carried out in multi-stage processes with sorption wheels. The energy required for drying can be minimized by smart process control and heat recovery.
With TIL Adsorption you will find a plant configuration and control system that meets the requirements of battery production and protects the environment by minimizing energy consumption.

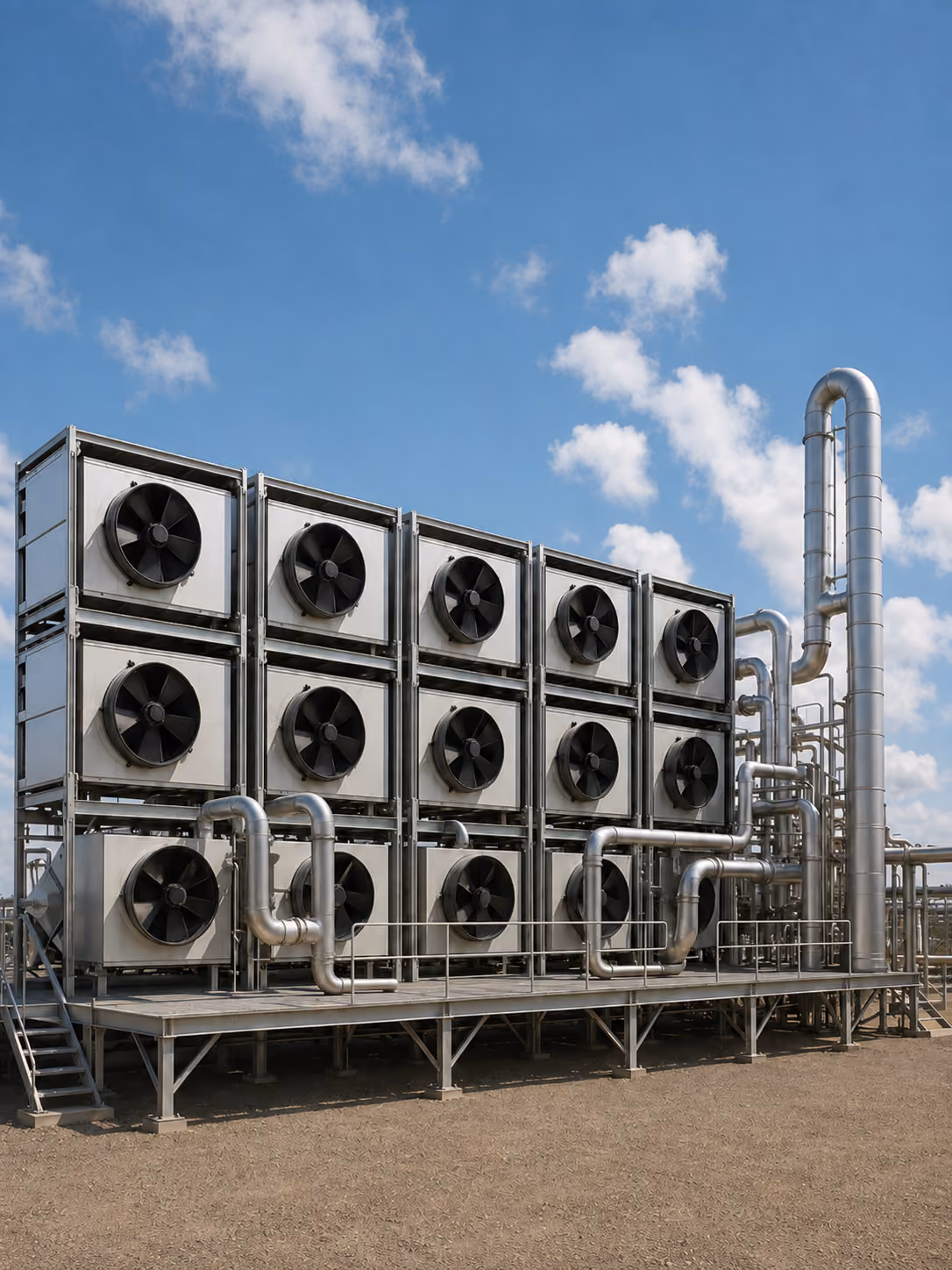

Direct Air Capture
Direct Air Capture offers the possibility of recovering carbon dioxide directly from the ambient air. Here, too, the basic principle is adsorption.
The CO2 from the environment is passed over large adsorbers via fans and adsorbed there. The subsequent desorption at about 100°C yields highly concentrated CO2 that can be utilized or stored.
At present, the technology still has a rather high energy requirement. In the MoGaTEx research project, we are investigating model-based design to increase energy efficiency with TIL adsorption.
Models for numerous adsorption systems
The library contains examples of adsorber columns, multiple discretized sorption wheels up to complete pressure swing adsorption (PSA) systems.
With the models you can e.g. optimize the dimensioning of adsorbers, investigate which sorbent is suitable for your process or improve control concepts and switching times for an adsorption plant.
PSA-Plant
Sorption Wheels
TSA-Plants
Drying Processes
Gas Purification
Biogas Processing
Gas Drying
Direct Air Capture
Air Separation
Your individual modell?
Dynamic simulation of your own adsorption system
Create your own models and use ready-made components and testers.
The Add-On Adsorption contains the following additional models. All components can be parameterized and combined with models from the TIL Suite standard library.
Brennstoffzelle
Chemischer Reaktor
Vorkühler H2
Speicher
Vorkühler mit LN2
Linde-Hampson Prozess
Adsorption cell
Adsorption tank
Adsorption tank
with insulation
Adsorption wheel
with 2 streams
Adsorption wheel
with 3 streams
Adsorption wheel
with 4 streams
Design adsorption plants with TIL Adsorption
Usability
Open and modifiable Modelica code that can be easily customized and integrated into your projects
Reliability
Continuously developed code that has been successfully used in the industry for years
Support
You are not alone. We support our customers with training, video chats and individual consulting services.
TIL Starter Package
Try TIL Adsorption as part of our starter package. Our TIL Starter Package includes everything you need for a successful start.
- OPTIONAL -
Hydrogen
Models of fuel cells, electrolysis, liquefaction, refueling station etc.
- OPTIONAL -
Adsorption
Models of gas purification, drying, temperature, pressure swing etc
- OPTIONAL -
PCM Storages
Models of various phase change materials , heat exchangers etc.
- OPTIONAL -
High Dynamic
For robust simulations with switching processes, transient boundary conditions etc.
TIL Suite
6 weeks of full access to the professional simulation library
TIL Add-Ons
Full flexibility with all TIL Add-Ons for diverse applications
Training
Learn fast with our hands-on TIL Training
Service & Support
10 hours of consulting and custom modeling support
Package Price: €2,900
Your success is our commitment! 100% money-back option
When you complete the TIL Starter Package successfully, you’ll receive 100% of your fee back — either as a credit toward your TIL licence or as a full refund.
Successful participation means you have:
attended the TIL Training,
participated in the Kick-Off Session,
defined a project goal that includes setting up a TIL model,
actively contributed to the setup of this model,
joined at least one Intermediate Session, and
taken part in a Final Review Session with our team.
All of these activities must be completed within the 6-week duration of the Starter Package.
